GP 400 SF DR PUR 400 Hz Aircraft Ground Power Cable is a symmetrical-flex supply cable engineered for motorized cable reels and cable-carrier systems. Its construction supports flexible movement while helping airport ground-power teams manage abrasion, oil exposure, low temperatures, and outdoor service conditions.
Applications
Use this cable in ground power units, mobile support equipment, motorized reel systems with a minimum 600 mm drum core diameter, and suitable cable carriers. Specify the final configuration against the installation route, drum geometry, duty cycle, and required power/control circuits.
Construction and Performance
- Fine-stranded bare copper conductors to IEC 60228 Class 5.

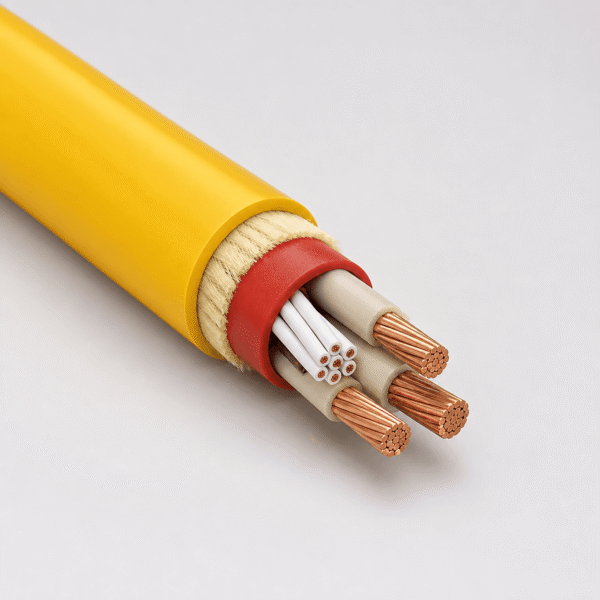

- Red PUR inner sheath, aramid supporting screen, and yellow abrasion-resistant PUR outer sheath.
- Low-capacitance insulation and layered stranding for repeated winding applications.
- Very good oil, weather, ozone, salt-water, hydrolysis, microbial, and abrasion resistance as stated in the source specification.
Technical Parameters
| Parameter | Specification |
|---|---|
| Nominal voltage | Uo/U 115/200 V |
| Maximum permissible operating voltage | Uo/U 0.6/1 kV |
| Test voltage | 4,000 V AC, 50 Hz core/core |
| Temperature range | Fixed −50 to +90 °C; flexible −40 to +90 °C |
| Minimum bending radius | 4 × D fixed; 6 × D repeated winding; 7.5 × D guided on pulleys |
| Minimum drum inner diameter | 600 mm |
| Minimum tensile strength | 4,035 N (15 N/mm²) |
| Reference configuration | 7 × 35.0 mm² + 6 × 4 × 1.0 mm²; approx. 42.3–42.9 mm OD |
Selection Support
Share your conductor layout, reel diameter, travel speed, ambient temperature, and connection requirements with TEBAOFLEX so the cable can be matched to the installation. Request a Quote
