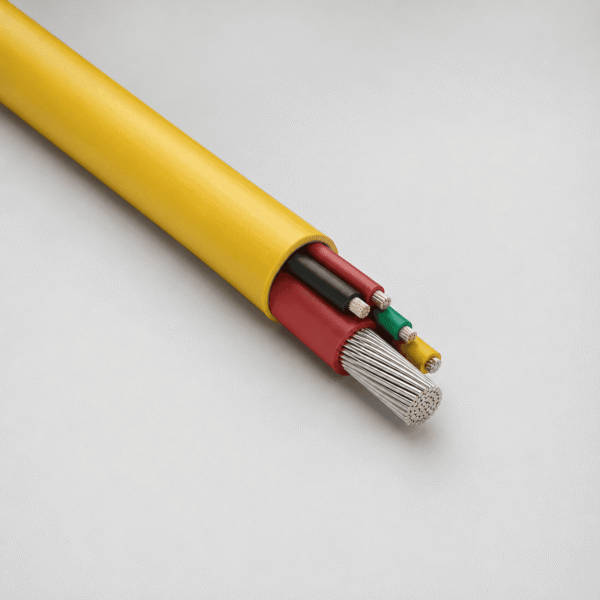

GP 400 SC / QF Special Polymer 400 Hz Aircraft Ground Power Cable is a flexible single-core and quad-flex ground-power cable family for mobile ground power units, PIT systems, and reeling connections where a soft special-polymer outer sheath is preferred.
Applications
This series supports flexible installation between ground support equipment, sleeves, plugs, and reeling interfaces. The SC construction integrates control cores within a power core, while the QF construction is open stranded for multi-element layouts.
Construction and Performance
- Tinned fine-stranded copper conductors to IEC 60228 Class 5.
- Red, black, green, and yellow control-core identification with red power cores.
- Red special-polymer inner sheath and yellow special-polymer outer sheath.
- Low-capacitance insulation, cold flexibility, and stated resistance to oil, weather, salt water, hydrolysis, microbes, ozone, fuel, and abrasion.
Technical Parameters
| Parameter | Specification |
|---|---|
| Nominal voltage | Uo/U 115/200 V |
| Maximum permissible operating voltage | Uo/U 0.6/1 kV |
| Test voltage | 4,000 V AC, 50 Hz core/core |
| Temperature range | Fixed −40 to +70 °C; flexible −30 to +70 °C |
| Minimum bending radius | 4 × D fixed; 6 × D flexible |
| SC constructions | 1 × (50.0 or 70.0 mm² + 4 × 1.0 mm²) |
| QF constructions | 4 × (50.0 or 70.0 mm² + 4 × 1.0 mm²) |
| Flame performance | IEC 60332-1-2 |
Selection Support
Send the required SC or QF layout, conductor sizes, and installation details to TEBAOFLEX. Request a Quote
