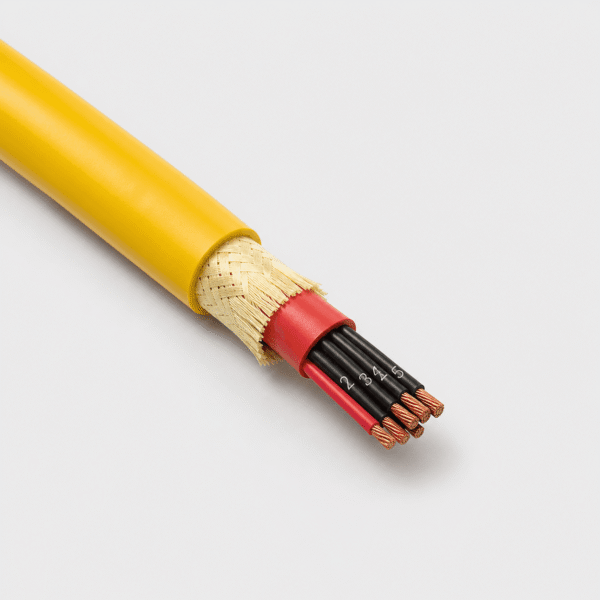

GP 270V DC Multi-Core PUR Aircraft Ground Power Cable is a flexible ground power supply cable for demanding DC support installations. The documented multi-core design combines power and control circuits with an aramid supporting braid and a yellow PUR outer sheath.
Applications
The cable is intended for aircraft ground power connections that require reliable flexible routing, weather resistance, and high mechanical durability. Confirm connector interfaces, duty cycle, and routing requirements before selection.
Construction and Performance
- Bare copper stranded conductors.
- Numbered black 14 AWG cores and red/black 8 AWG core identification.
- Red PUR inner sheath, aramid supporting braid, and yellow PUR outer sheath.
- Halogen-free construction with oil, weather, ozone, salt-water, hydrolysis, microbial, abrasion, and fuel resistance specified for the cable.
Technical Parameters
| Parameter | Specification |
|---|---|
| Nominal voltage | 270 V DC |
| Test voltage | 3,000 V AC / 5 min for 14 AWG; 5,500 V AC / 5 min for 8 AWG |
| Temperature range | Fixed −50 to +90 °C; flexible −40 to +90 °C; +110 °C limited to 7,500 h |
| Minimum bending radius | 4 × D fixed; 6 × D flexible |
| Example configuration | 8 × 8 AWG + 8 × 8 AWG + 2 × 3 × 14 AWG |
| Outer diameter | 40.0–41.9 mm |
| Approximate cable weight | 2,564 kg/km |
