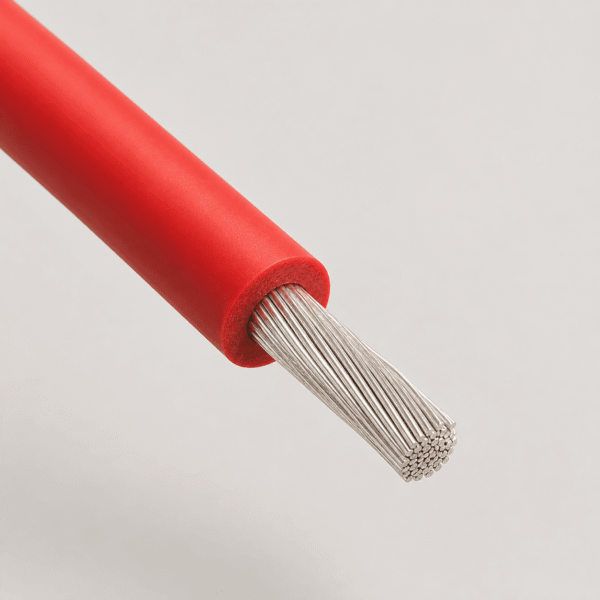

FZLSi 10 kV silicone high-voltage ignition wire is a single-core cable for ignition circuits and high-temperature equipment where silicone insulation and a fine stranded tinned copper conductor are required.
Applications
This cable supports high-voltage ignition connections in control cabinets, heating and thermal equipment, motors, generators, transformers, lighting, ventilation and other elevated-temperature installations. Adequate ventilation is required where silicone cable mechanical properties may be affected by sustained high temperatures.
Construction
Fine-wire tinned copper conductor with red silicone-based insulation. The single-core construction is halogen-free and designed for a stated 10 kV nominal voltage.
Technical Parameters
| Parameter | Value |
|---|---|
| Nominal voltage | 10 kV |
| Test voltage | 20 kV |
| Temperature range | -50°C to +180°C |
| Short-term temperature | +200°C |
| Minimum bending radius, fixed | 6 × core diameter |
| Halogen-free | IEC 60754-1 |
| Flame retardant | IEC 60332-1-2 |
Selected Size Options
| Cross section (mm²) | Stranding | Outer diameter (mm) | Copper index (kg/km) | Weight (kg/km) |
|---|---|---|---|---|
| 1.0 | 32 × 0.20 | 7.0 | 9.6 | 68 |
| 1.5 | 30 × 0.25 | 7.6 | 14.4 | 83 |
Values are nominal. Confirm the ignition-system voltage, conductor size and installation conditions before ordering.
