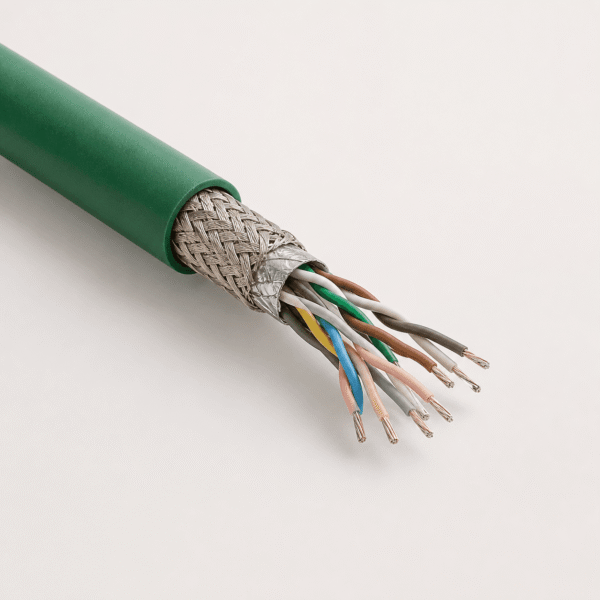

EFK Feedback-CP Screened PUR Drag Chain Feedback Cable is a flexible cable for encoder and resolver feedback links between servo motors and controllers. The cable uses polypropylene insulation, a tinned copper braid screen and a green polyurethane outer sheath to support dependable signal connections in machine tools and drag chains with medium mechanical stress.
Applications
Use EFK Feedback-CP for servo feedback circuits in machine tools, automated production equipment and cable carrier systems where a screened connection cable is required. The construction is suitable for indoor and outdoor installations with a maximum moving distance of 100 m. For your required core layout, Request a Quote from TEBAOFLEX.
Construction and Key Features
- Class 6 extra-fine stranded bare copper conductors to DIN EN IEC 60228.
- Polypropylene insulated cores with green RAL 6018 polyurethane outer sheath.
- Tinned copper braid screen with approximately 85% coverage.
- UL/CSA specification, flame-retardant, halogen-free, UV-resistant and oil-resistant construction.
- Temperature range: -50°C to +80°C fixed; -40°C to +80°C moving.
- Minimum bending radius: 5 × overall diameter fixed; 7.5 × overall diameter moving.
- Up to 5 million bending cycles under suitable drag chain conditions.
Technical Parameters
| Core configuration | Approx. outer diameter (mm) | Copper weight (kg/km) | Net weight (kg/km) | Reference system |
|---|---|---|---|---|
| 8 × 2 × 0.18 mm² | 7.8 | 54 | 88 | Feedback cable configuration |
| 4 × 2 × 0.34 + 4 × 0.5 mm² | 8.9 | 83 | 123 | Feedback cable configuration |
| 3 × (2 × 0.14) + 2 × 0.5 mm² | 9.0 | 74 | 109 | Feedback cable configuration |
| 3 × (2 × 0.14) + 4 × 0.14 + 2 × 0.5 mm² | 8.9 | 74 | 106 | Feedback cable configuration |
| 3 × (2 × 0.14) + 4 × 0.14 + 2 × 0.5 + 4 × 0.25 mm² | 9.5 | 86 | 136 | Feedback cable configuration |
| 2 × 2 × 0.18 mm² | 5.0 | 24 | 40 | Feedback cable configuration |
| 12 × 0.22 mm² | 6.9 | 65 | 79 | Feedback cable configuration |
Peak operating voltage is 300 V. Values are nominal; verify the required feedback circuit, cable routing and movement duty before ordering.
Selection Support
TEBAOFLEX can help match feedback core layouts, EMC screening and flexing requirements to your servo system and drag chain application.
