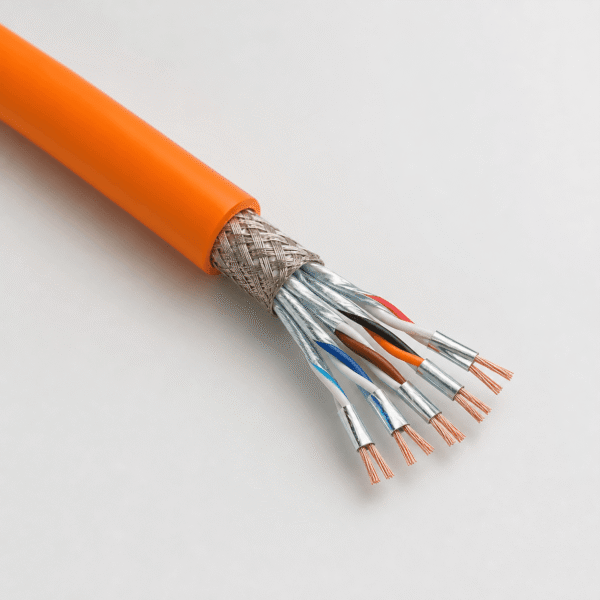

EFK Feedback-CP(i) Screened PUR Drag Chain Feedback Cable is a flexible encoder and resolver connection cable for servo controller feedback circuits in machine tools and drag chain systems. It combines extra-fine stranded copper conductors, TPE insulation, a tinned copper braid screen and an orange polyurethane outer sheath for dependable signal transmission under medium mechanical stress.
Applications
EFK Feedback-CP(i) is suitable for encoder and resolver connections between servo motors and controllers where repeated movement, compact routing and electromagnetic protection are required. It is designed for indoor and outdoor machine applications with a maximum moving distance of 100 m. For a confirmed configuration, Request a Quote from TEBAOFLEX.
Construction and Key Features
- Class 6 extra-fine stranded bare copper conductors to DIN EN IEC 60228.
- TPE core insulation and an orange RAL 2003 polyurethane outer sheath.
- Tinned copper braid screen with approximately 85% coverage.
- UL/CSA specification, flame-retardant, halogen-free, UV-resistant and oil-resistant construction.
- Temperature range: -50°C to +80°C fixed; -40°C to +80°C moving.
- Minimum bending radius: 5 × overall diameter fixed; 7.5 × overall diameter moving.
- Up to 5 million bending cycles under suitable drag chain conditions.
Technical Parameters
| Core configuration | Conductor resistance (Ω/km) | Approx. outer diameter (mm) | Copper weight (kg/km) | Net weight (kg/km) |
|---|---|---|---|---|
| 4 × 2 × 0.25 + 2 × 0.5 mm² | — | 9.0 | 70 | 95 |
| 4 × 2 × 0.25 + 2 × 1.0 mm² | — | 9.1 | 93 | 118 |
| 9 × 0.5 mm² | — | 9.1 | 81 | 119 |
| 4 × 1 + 4 × 2 × 0.14 + 4 × 0.14 mm² | 19.5 | 9.7 | 85 | 142 |
| 3 × 0.25 + 3 × (2 × 0.25) + 2 × 1.0 mm² | 19.5 | 10.0 | 93.1 | 143 |
| 2 × 2 × 0.25 + 2 × 0.5 mm² | 14.2 | 7.6 | 51.2 | 84 |
Nominal voltage is 300/300 V. Confirm the connector system, feedback signal layout and chain travel requirements before final selection.
Selection Support
TEBAOFLEX can review motion duty, bend radius, routing and shielding requirements to help specify a suitable feedback cable for your servo installation.
