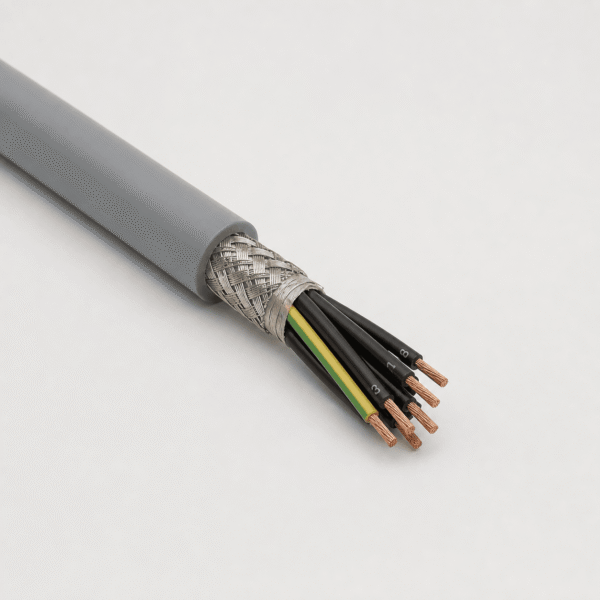

EFK 300 CP Screened PUR Drag Chain Control Cable is a highly flexible, EMC-screened control cable for continuously moving equipment in drag chains. Its TPE/PP core insulation, polyurethane inner and outer sheaths, and tinned copper braid support reliable control connections in industrial automation where oils, weather exposure and repeated bending are present.
Applications
Use EFK 300 CP in machine tools, automated handling equipment, cable carriers and other indoor or outdoor motion systems with specific electromagnetic compatibility requirements. For project-specific core counts and lengths, Request a Quote from TEBAOFLEX.
Key Construction and Performance
- Extra-fine stranded bare copper conductors, Class 6 to DIN EN IEC 60228.
- TPE/PP insulation with polyurethane inner sheath and grey polyurethane outer sheath.
- Tinned copper braid screen with approximately 85% coverage for EMC protection.
- Halogen-free, flame-retardant, UV-resistant and oil-resistant construction.
- Temperature range: -25°C to +80°C in fixed and moving applications.
- Minimum bending radius: 4 × overall diameter fixed; 7.5 × overall diameter moving.
Technical Parameters
| Core configuration | Conductor resistance (Ω/km) | Approx. outer diameter (mm) | Copper weight (kg/km) | Net weight (kg/km) |
|---|---|---|---|---|
| 2 × 0.5 mm² | 39 | 7.1 | 48 | 61 |
| 4G × 0.5 mm² | 39 | 7.8 | 61 | 122 |
| 7G × 0.75 mm² | 26 | 10.3 | 107 | 125 |
| 12G × 1.0 mm² | 19.5 | 13.0 | 186 | 358.2 |
| 5G × 1.5 mm² | 13.3 | 11.0 | 129 | 148 |
| 7G × 2.5 mm² | 7.98 | 14.7 | 275 | 418 |
| 4G × 10 mm² | 1.91 | 20.8 | 518 | 984 |
| 7G × 16 mm² | 1.21 | 32.4 | 1510 | 2087 |
Values are nominal and intended for cable selection. Confirm the required configuration, movement conditions and installation geometry before ordering.
Selection Support
TEBAOFLEX supports cable selection for drag chain travel, EMC requirements and custom lengths. Provide your core configuration, travel distance and application environment when requesting a quotation.
