Overview: BUFLEX-M in Industrial Applications
The BUFLEX-M polyurethane cable has established itself as the go-to flexible cable solution across a broad spectrum of industrial applications. From high-speed packaging lines to precision robotic welding cells, BUFLEX-M delivers the mechanical resilience, electrical reliability, and environmental resistance that modern manufacturing demands. This article explores the key application areas where BUFLEX-M excels and provides practical installation guidance for each.
Industrial automation systems increasingly rely on continuous motion equipment — cable chains, robotic arms, linear slides, and rotating tables — that subject cables to millions of flex cycles. Standard cables designed for fixed installations simply cannot survive these conditions. The BUFLEX-M cable was engineered specifically for these dynamic applications, combining a Class 5 finely stranded copper conductor with a high-performance PUR sheath to achieve a flex life exceeding 3 million cycles.
Key Application Areas
1. Cable Chains and Drag Chain Systems
Cable chains (also known as energy chains or drag chains) are the most common application for flexible control cables in industrial automation. These systems guide and protect cables along a defined path, typically between a stationary control panel and a moving machine component. The BUFLEX-M’s optimized construction makes it ideally suited for:
- Linear cable carriers: Travel distances up to 100+ meters in gantry systems and material handling equipment
- Glider-equipped chains: High-speed applications where smooth cable movement is essential to prevent tangling and wear
- Multi-axis systems: Combined linear and rotational motion in CNC machining centers and coordinate measuring machines
The key to successful cable chain installation is proper cable selection based on the chain’s travel length, speed, and acceleration. For travel distances exceeding 50 meters, a glider system is typically required, and the cable must be free of internal adhesion between components. BUFLEX-M’s design ensures smooth relative movement between cores, preventing internal friction that leads to premature failure.
2. Robotic Automation Systems
Industrial robots represent one of the most demanding applications for flexible cables. The complex, multi-axis motion of robotic arms subjects cables to combined bending and torsional stress that few cable designs can withstand. BUFLEX-M is specified in robotic applications including:
- Welding robots: Where splatter resistance and heat tolerance are critical
- Material handling robots: Continuous pick-and-place operations with high duty cycles
- Assembly robots: Precision applications requiring reliable signal and power transmission
- Painting and coating robots: Environments with solvent and chemical exposure
For robotic applications, the torsional flex version (BUFLEX-M-TR) is recommended. This variant features a special stranding design that distributes stress more evenly across the cable cross-section, extending flex life in multi-axis motion scenarios.

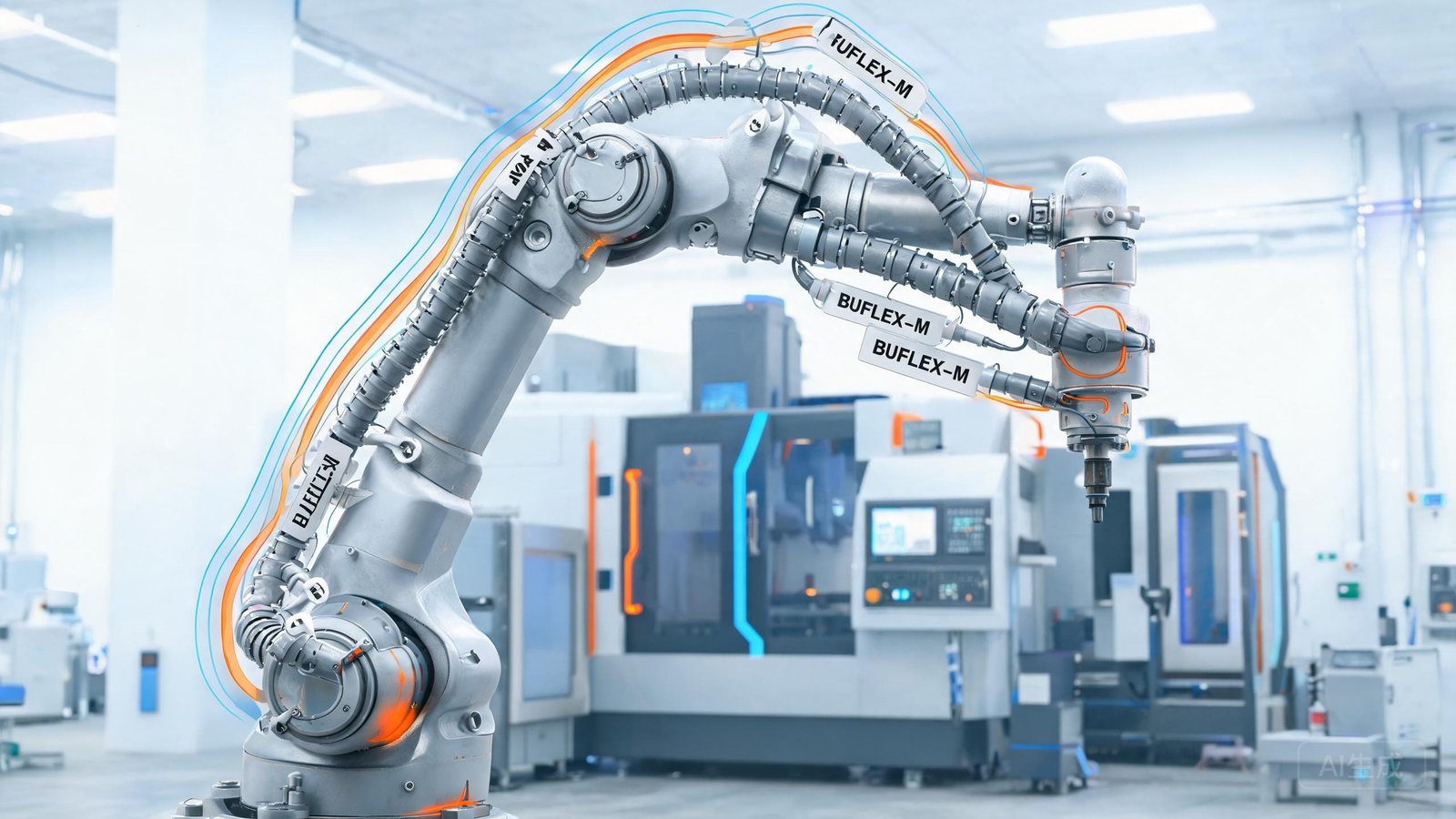

BUFLEX-M PUR cables in robotic automation: continuous flex along multi-axis robot arms

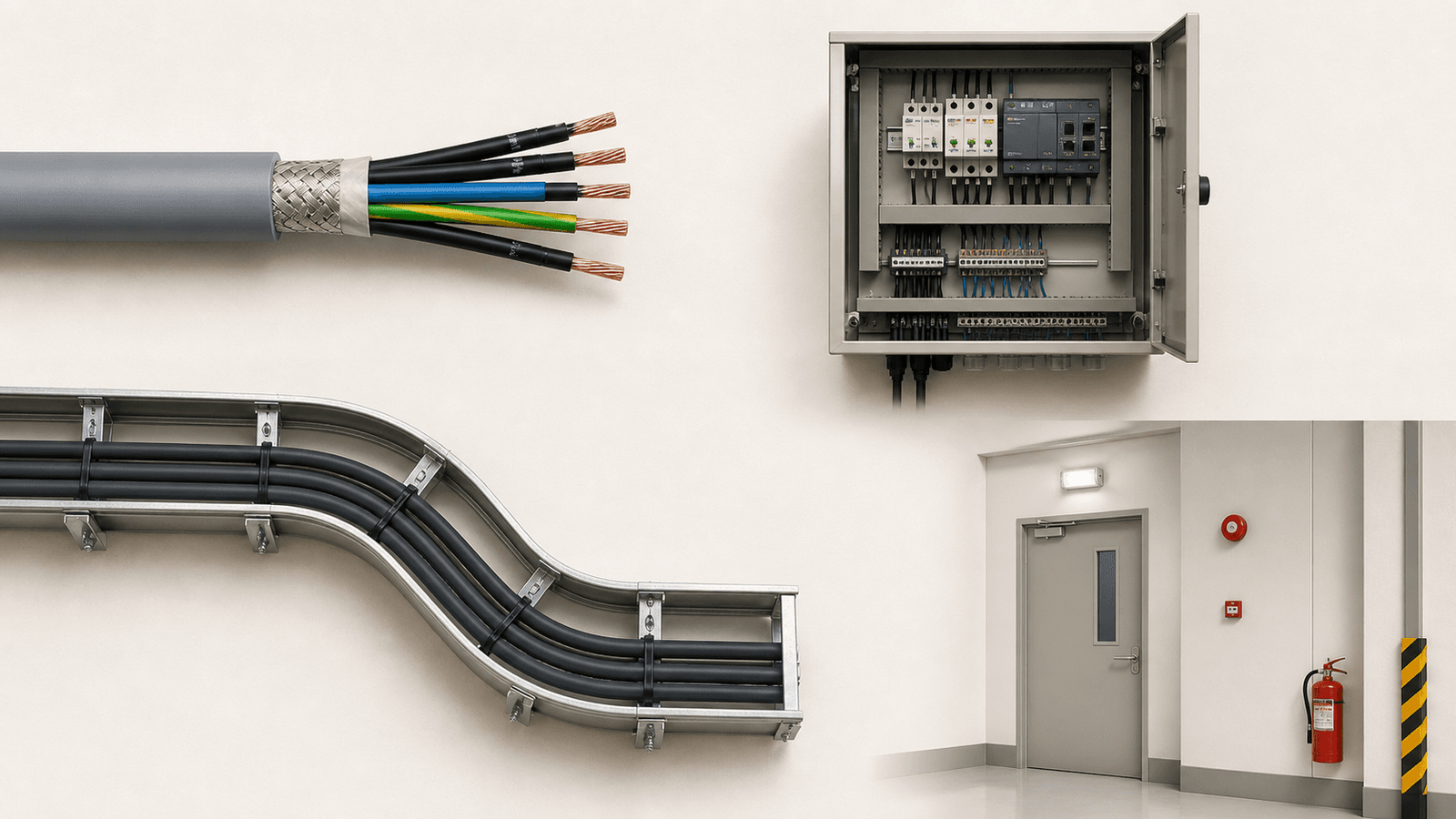

Industrial control cabinet with BUFLEX-M PUR cables properly routed in cable trays for automation applications
3. Machine Tool and CNC Applications
CNC machine tools represent another critical application area for BUFLEX-M cables. The constant sliding motion of machine components, combined with exposure to cutting fluids and metal chips, creates a challenging environment for cable longevity. BUFLEX-M addresses these challenges through:
- Cutting fluid resistance: The PUR sheath resists degradation from common water-soluble and neat oil cutting fluids, preventing the swelling, cracking, and insulation failure common in standard cables
- Chip and swarf resistance: The tough PUR surface resists cutting damage from metal chips, extending cable life in machining environments
- Compact design: Available in small cross-sections and high core counts for installation in tight machine tool cable tracks
4. Packaging and Material Handling
Packaging machinery operates at high speeds with continuous motion, placing extreme demands on cable flexibility and durability. BUFLEX-M is widely used in:
- Flow wrappers and horizontal form-fill-seal machines
- Vertical packaging equipment with reciprocating motion
- Conveyor sorting systems with pneumatic actuators
- Palletizers and depalletizers with multi-axis movement
- Automated guided vehicles (AGVs) and autonomous mobile robots (AMRs)
The Industry 4.0 trend has accelerated the adoption of smart packaging equipment that integrates power, control, and data signals within a single cable management system. BUFLEX-M’s hybrid cable options combine different conductor sizes and signal pairs within one cable, simplifying installation and reducing cable chain congestion.
5. Crane and Hoist Systems
Overhead cranes, hoists, and material handling systems require cables that can withstand repeated reeling, bending, and outdoor exposure. BUFLEX-M’s UV-stable PUR formulation and superior mechanical strength make it suitable for:
- Overhead traveling crane power and control lines
- Hoist and monorail pendant control cables
- Gantry crane festoon systems
- Stacker reclaimer power supply cables
For outdoor crane applications, the orange RAL 2003 sheath option provides enhanced visibility for safety compliance, while the UV-stable PUR formulation ensures long-term performance under sun exposure.
Installation Guidelines for BUFLEX-M
Cable Chain Installation
Proper installation in cable chains is critical to achieving maximum cable life. Follow these essential guidelines:
1. Cable Selection: Choose a cable with an outer diameter that fills approximately 60-70% of the chain cavity height. Cables that are too small will migrate and tangle; cables that are too large will cause chain binding.
2. Cable Spacing: Maintain a minimum gap of 10% of cable diameter between adjacent cables to prevent cross-abrasion. For cables of different diameters, separate them with dividers.
3. Bending Radius: The minimum bending radius for flexing applications is 7.5× the cable outer diameter. For fixed installations, 4×D is acceptable. Never install cables below the minimum bend radius, as this dramatically reduces flex life.
4. Tension Relief: Secure cables at both ends of the cable chain using appropriate strain relief clamps. The cable should be installed with zero tension when the chain is at mid-stroke position.
5. Twisting Prevention: Ensure cables are installed without twist. Twisting introduces torsional stress that accelerates conductor fatigue. Use rotary debraiding tools when pulling cable from the drum.

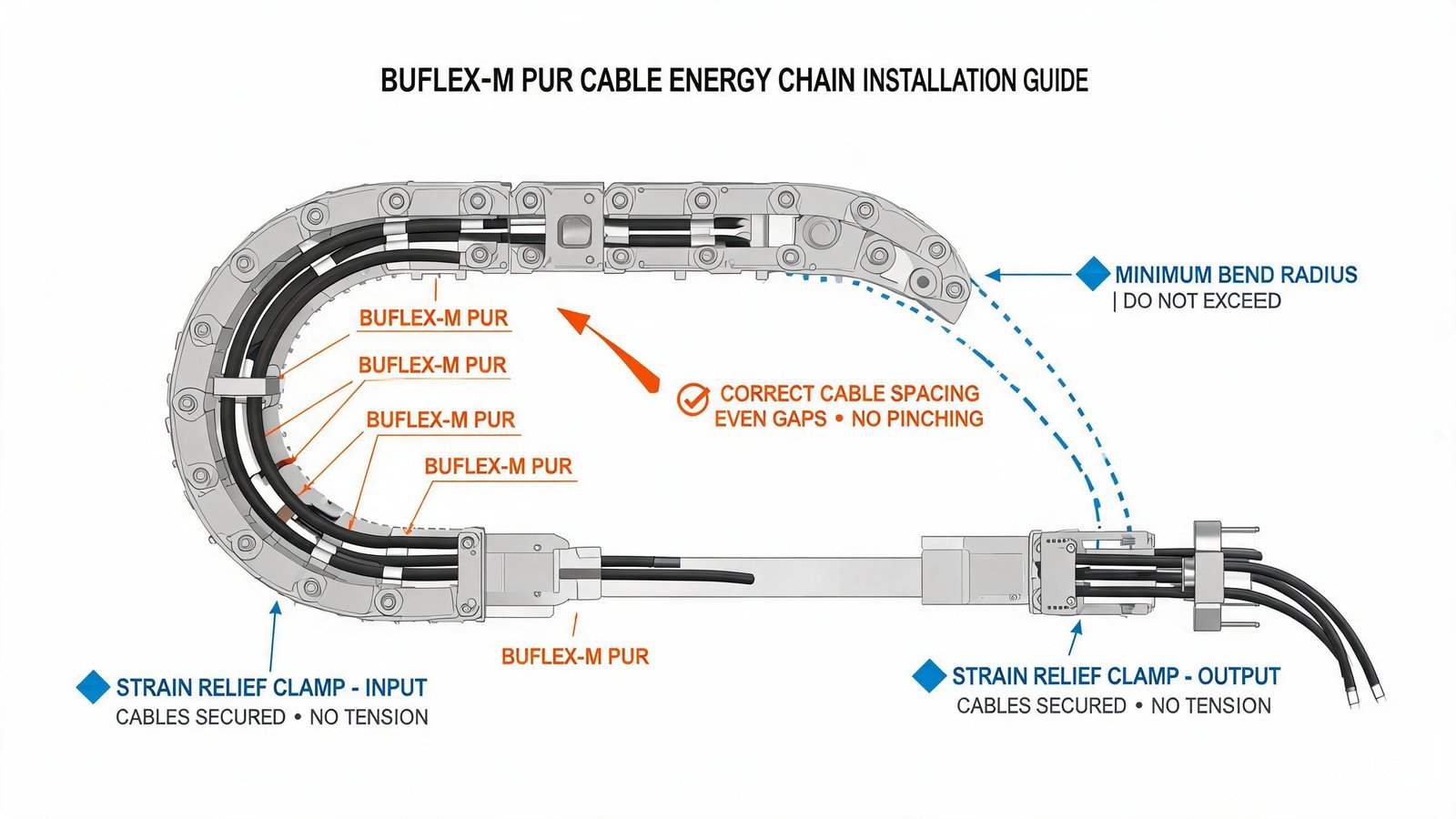

BUFLEX-M cable chain installation: proper routing, spacing, bend radius, and strain relief
Robotic Application Installation
For robotic installations, additional considerations apply:
- Use the torsional flex version (BUFLEX-M-TR) for multi-axis robots
- Install cables along the robot arm following the manufacturer’s cable routing specifications
- Use flexible conduit or protective sleeving at points of potential mechanical contact
- Provide adequate strain relief at the robot base and end-effector
- Avoid sharp transitions in cable routing — use smooth curves with gradual direction changes
Environmental Considerations
When installing BUFLEX-M cables, consider the environmental conditions:
- Temperature: For flexing applications, ensure ambient temperature is above -5°C. For fixed installations, the cable can withstand temperatures as low as -40°C.
- Chemical exposure: While PUR provides excellent oil resistance, verify compatibility with any specialized chemicals in your environment. Contact our engineering services team for chemical compatibility data.
- UV exposure: The PUR formulation is UV-stable, making it suitable for both indoor and outdoor applications without additional protection.
- Moisture: BUFLEX-M is resistant to water splash and humidity. For submersion applications, consult our team for specialized waterproof configurations.
BUFLEX-M in Specialized Industries
Automotive Manufacturing
The automotive industry represents one of the largest markets for BUFLEX-M cables. Assembly lines, robotic welding cells, paint shops, and body-in-white operations all rely on flexible cables that can withstand oils, metalworking fluids, and constant motion. BUFLEX-M’s superior oil resistance and flex life make it the preferred choice for Tier 1 automotive suppliers worldwide.
Food and Beverage Processing
In food processing environments, cable hygiene is paramount. BUFLEX-M’s smooth PUR sheath is easy to clean, resists bacterial growth, and withstands the harsh cleaning chemicals used in food-grade facilities. The cable is available with FDA-compliant materials upon request, making it suitable for direct food zone applications.
Pharmaceutical Manufacturing
Pharmaceutical production requires cables that withstand cleanroom conditions, frequent sterilization cycles, and chemical exposure. BUFLEX-M’s chemical-resistant PUR sheath and optional halogen-free formulation make it suitable for GMP-compliant facilities. The cable’s smooth surface minimizes particle generation and facilitates cleanroom-compatible installation.
Renewable Energy
Solar tracking systems and wind turbine pitch control systems require cables that combine flexibility with outdoor weather resistance. BUFLEX-M’s UV-stable PUR formulation and superior flex life make it an excellent choice for renewable energy applications where maintenance access is difficult and cable failure is costly.
Maintenance and Inspection Recommendations
To maximize the service life of BUFLEX-M cables, implement a regular inspection program:
- Visual inspection: Monthly checks for sheath damage, abrasion, or oil contamination
- Bend inspection: Quarterly verification that cables maintain proper bend radius in cable chains
- Continuity testing: Annual insulation resistance and continuity testing to detect early-stage conductor degradation
- Replacement planning: Track flex cycles and plan replacement before the rated flex life is exceeded
For comprehensive maintenance guidelines and inspection checklists, visit our BUFLEX-M product detail page or contact our technical support team.
Why Choose BUFLEX-M for Your Application?
The decision to specify BUFLEX-M for your industrial application is supported by a compelling combination of performance advantages:
- Extended service life: 3+ million flex cycles reduce downtime and replacement costs
- Simplified maintenance: Oil and chemical resistance eliminates the need for additional protective sleeving
- Installation flexibility: Wide temperature range and compact design facilitate installation in confined spaces
- Standardized compliance: CE, RoHS, and IEC certifications ensure regulatory acceptance across global markets
Get Application-Specific Cable Recommendations
Our engineering team can analyze your specific application requirements — including motion patterns, environmental conditions, and regulatory standards — and recommend the optimal BUFLEX-M configuration for your needs.
Selection Reference
| Application | Cable duty to define | Why it matters |
|---|---|---|
| Automation machinery | Routing path, movement pattern and control or power function | Helps match the cable design to the machine layout. |
| Material-handling equipment | Travel path, abrasion exposure and termination points | Identifies mechanical risks before installation. |
| Flexible power or control runs | Core count, conductor size and required signal arrangement | Supports a complete electrical specification. |
| Industrial production areas | Oil, moisture, cleaning media and ambient conditions | Guides jacket and environment review. |
