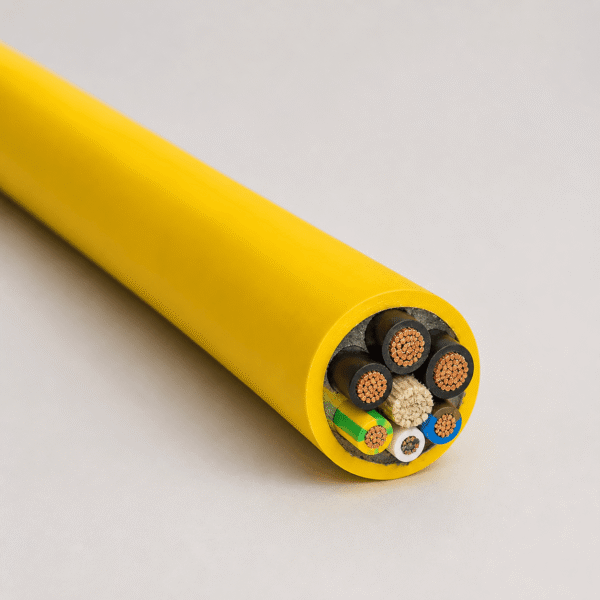

0.6/1kV BUFLEX-M PUR Cable is a heavy-duty flexible power and control cable with XLPE-insulated copper conductors, a central strength member and a flame-retardant polyurethane outer sheath. It is suitable for demanding industrial power and control connections where dynamic movement, oil resistance and UV resistance are required.
Applications
- Heavy-duty industrial machinery and moving equipment
- Mining and quarry installations
- Flexible power and control circuits with pilot cores
Construction
- Flexible bare copper conductors, Class 5 to IEC 60228
- XLPE core insulation
- Central strength member
- Polyurethane thermoplastic inner sheath
- Flame-retardant polyurethane outer sheath, yellow
- Two pilot cores, white and blue
Technical Data
| Parameter | Specified value |
|---|---|
| Rated voltage | 0.6/1 kV (1.2 kV maximum) |
| Maximum conductor temperature | +90 °C |
| Conductor | Flexible bare copper, Class 5, IEC 60228 |
| Insulation | XLPE |
| Outer sheath | Flame-retardant PUR, oil and UV resistant |
| Phase core colours | Brown, black and grey |
| Earth core colour | Green/yellow |
| Pilot core colours | White and blue |
Dimensions and Weights
| Cable construction | Outer diameter min. | Outer diameter max. | Weight | Static bending radius | Dynamic bending radius |
|---|---|---|---|---|---|
| 3×25 + 3G6 + 2×1×1 mm² | 21.5 mm | 24.0 mm | 1,200 kg/km | 144 mm | 192 mm |
| 3×35 + 3G6 + 2×1×1.5 mm² | 25.0 mm | 28.0 mm | 1,600 kg/km | 168 mm | 224 mm |
| 3×50 + 3G10 + 2×1×1.5 mm² | 29.0 mm | 32.0 mm | 2,100 kg/km | 192 mm | 256 mm |
| 3×70 + 3G16 + 2×1×1.5 mm² | 34.0 mm | 37.0 mm | 3,000 kg/km | 222 mm | 296 mm |
| 3×95 + 3G16 + 2×1×1.5 mm² | 39.0 mm | 42.0 mm | 3,900 kg/km | 252 mm | 336 mm |
| 3×120 + 3G25 + 2×1×1.5 mm² | 42.0 mm | 46.5 mm | 4,900 kg/km | 279 mm | 372 mm |
| 3×150 + 3G25 + 2×1×1.5 mm² | 48.5 mm | 52.0 mm | 6,000 kg/km | 312 mm | 416 mm |
| 3×185 + 3G35 + 2×1×1.5 mm² | 53.5 mm | 56.0 mm | 7,400 kg/km | 336 mm | 448 mm |
| 3×240 + 3G50 + 2×1×1.5 mm² | 61.5 mm | 64.5 mm | 9,600 kg/km | 387 mm | 516 mm |
