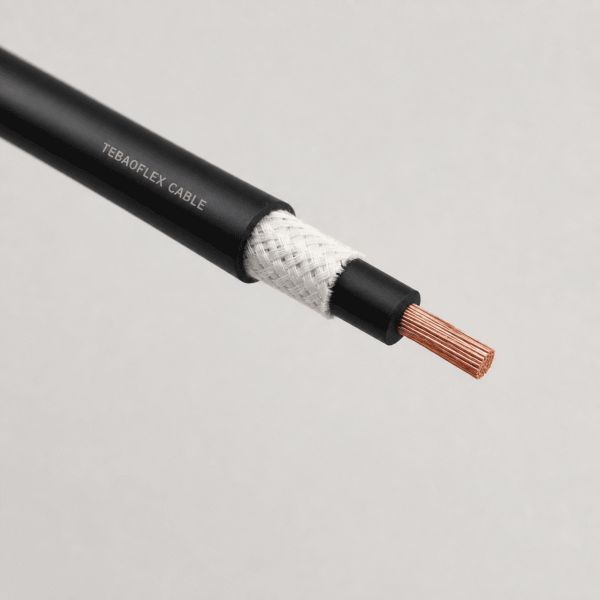

Style 3304 & 3573 10 kV Fiberglass Ignition Wire is a single-core, high-temperature cable range for ignition circuits. Silicone insulation and fiberglass reinforcement support applications exposed to elevated temperature, thermal shock and UV.
Applications
This fiberglass ignition wire range is intended for ignition circuits and electric-arc generation in piezo-electric equipment, gas burners, oil burners, boiler equipment and professional appliances.
Construction and Performance
- Silicone insulation provides a high-temperature dielectric layer.
- Style 3304 uses silicone-coated fiberglass braid, while Style 3573 uses fiberglass braid.
- The documented temperature range is -60°C to +200°C.
- The construction is referenced as halogen-free to IEC 60754-1 and EN 60754-1.
Technical Specifications
| Specification | Value |
|---|---|
| Cable type | Single-core fiberglass reinforced silicone ignition wire |
| Conductor options | Bare, tin-plated, nickel-plated or silver-plated copper |
| Insulation | Silicone rubber |
| Style 3304 reinforcement | Silicone-coated fiberglass braid |
| Style 3573 reinforcement | Fiberglass braid |
| Pulse voltage | 10 kV AC |
| Operating temperature | -60°C to +200°C |
| Halogen-free reference | IEC 60754-1 / EN 60754-1 |
Available Sizes and Style Options
| Nominal cross-section | Style 3304 insulation / diameter | Style 3573 insulation / diameter |
|---|---|---|
| 0.34 mm² (22 AWG) | 1.0 mm / 3.1 mm | 1.0 mm / 3.2 mm |
| 0.50 mm² | 1.0 mm / 3.2 mm | 1.0 mm / 3.4 mm |
| 0.60 mm² (20 AWG) | 1.0 mm / 3.4 mm | 1.0 mm / 3.6 mm |
| 0.75 mm² | 1.0 mm / 3.5 mm | 1.0 mm / 3.7 mm |
| 0.93 mm² (18 AWG) | 1.0 mm / 3.5 mm | 1.0 mm / 3.7 mm |
| 1.00 mm² | 1.0 mm / 3.7 mm | 1.0 mm / 3.9 mm |
| 1.34 mm² (16 AWG) | 1.0 mm / 3.8 mm | 1.0 mm / 4.1 mm |
| 1.50 mm² | 1.0 mm / 4.0 mm | 1.0 mm / 4.3 mm |
| 2.50 mm² | 1.0 mm / 4.5 mm | 1.0 mm / 4.8 mm |
| 4.00 mm² | 1.0 mm / 5.0 mm | 1.0 mm / 5.3 mm |
Selection Guidance
Select the required style, conductor plating, cross-section, installation routing and thermal conditions before finalising a specification. To discuss a suitable configuration, request a quote from TEBAOFLEX CABLE.
