R-(N)TSCGEWÖU + FO combines medium-voltage power and fibre-optic communication in a reeling cable. The two supplied TEBAOFLEX datasheets describe different material constructions: a red thermoset/polyamide version from 3.6/6 to 12/20 kV and a red PCP/polyester version with options up to 20/35 kV. Their operating and dimension data must not be mixed.
Applications and version selection
Use this family where mobile excavators, dumpers, crushers or other material-handling machines need power and an integrated optical data path on monospiral or cylindrical reels. Select by voltage, core schedule, optical fibre type, reel geometry, movement and environmental exposure—not by the FO suffix alone. Compare related mining cable applications and confirm the installation with TEBAOFLEX.
Two documented constructions
| Specification | Thermoset / polyamide version | PCP / polyester version |
|---|---|---|
| Source voltage range | 3.6/6 to 12/20 kV | 3.6/6 to 20/35 kV |
| Conductor | Class 5 tinned or bare copper | Fine-stranded bare copper |
| Insulation | Special EPDM rubber | Lead-free special EPR-based compound |

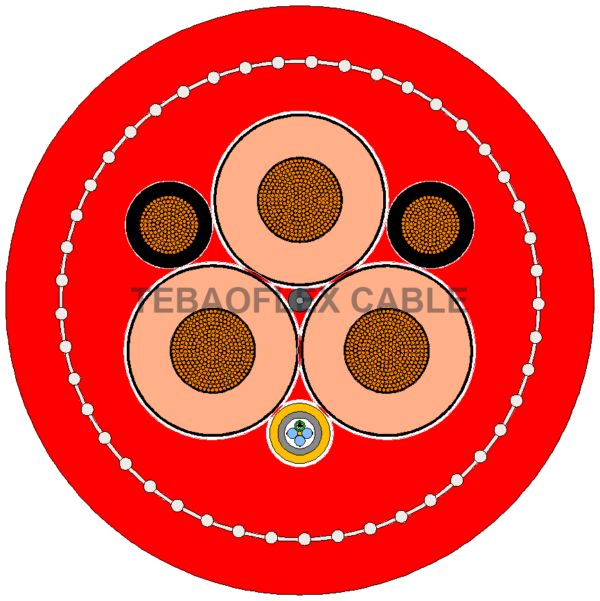

| Earth / FO | 3 phase + 2 earth + FO module | 3 phase + split earth + FO unit |
| Inner sheath | Thermoset compound 5GM3 | EPR-based compound |
| Torsion element | Polyamide thread braid | Polyester braid in vulcanized bond |
| Outer sheath | Red thermoset compound 5GM5 | Red CR/PCP compound |
| Flexible ambient minimum | -25 °C | -35 °C |
| Bend limit | 12 × OD drums; 15 × OD pulleys | Per DIN VDE 0298-3; S-type change 20 × OD |
The thermoset version lists an A-D(ZN)13Y optical module with 6, 12, 18 or 24 fibres and G50/125, G62.5/125 or E9/125 types. The PCP version lists the same fibre-count choices on request. Confirm the fibre specification, attenuation and termination plan for the order.
Thermoset / polyamide version: 3.6/6–12/20 kV
This table reproduces the 31 size rows in the corresponding datasheet. Each row combines three phase cores, two earth positions and an FO module. The source lists +90 °C conductor operation, +250 °C short-circuit temperature, -40 °C fixed and -25 °C mobile ambient minimums, and a 6 × OD fixed bend radius.
| U₀/U (kV) | Cores | Phase + earth (mm²) | Conductor Ø (mm) | Nominal OD (mm) | Mass (kg/km) | Tensile (N) |
|---|---|---|---|---|---|---|
| 3.6/6 | 3+2+FO | 25+25/2 | 6.5 | 39.9 | 2479 | 1500 |
| 3.6/6 | 3+2+FO | 35+25/2 | 7.5 | 42.0 | 2882 | 2100 |
| 3.6/6 | 3+2+FO | 50+25/2 | 9.3 | 45.8 | 3534 | 3000 |
| 3.6/6 | 3+2+FO | 70+35/2 | 11.1 | 51.5 | 4653 | 4200 |
| 3.6/6 | 3+2+FO | 95+50/2 | 13.0 | 55.6 | 5689 | 5700 |
| 3.6/6 | 3+2+FO | 120+70/2 | 14.5 | 58.8 | 6842 | 7200 |
| 3.6/6 | 3+2+FO | 150+70/2 | 16.2 | 64.3 | 8259 | 9000 |
| 3.6/6 | 3+2+FO | 185+95/2 | 18.3 | 68.8 | 9624 | 11100 |
| 6/10 | 3+2+FO | 25+25/2 | 6.5 | 41.6 | 2624 | 1500 |
| 6/10 | 3+2+FO | 35+25/2 | 7.5 | 43.7 | 3035 | 2100 |
| 6/10 | 3+2+FO | 50+25/2 | 9.3 | 47.5 | 3699 | 3000 |
| 6/10 | 3+2+FO | 70+35/2 | 11.1 | 53.2 | 4840 | 4200 |
| 6/10 | 3+2+FO | 95+50/2 | 13.0 | 57.3 | 5890 | 5700 |
| 6/10 | 3+2+FO | 120+70/2 | 14.5 | 60.6 | 7054 | 7200 |
| 6/10 | 3+2+FO | 150+70/2 | 16.2 | 66.0 | 8490 | 9000 |
| 6/10 | 3+2+FO | 185+95/2 | 18.3 | 70.5 | 9871 | 11100 |
| 8.7/15 | 3+2+FO | 25+25/2 | 6.5 | 45.1 | 2933 | 1500 |
| 8.7/15 | 3+2+FO | 35+25/2 | 7.5 | 47.1 | 3359 | 2100 |
| 8.7/15 | 3+2+FO | 50+25/2 | 9.3 | 52.7 | 4270 | 3000 |
| 8.7/15 | 3+2+FO | 70+35/2 | 11.1 | 56.7 | 5231 | 4200 |
| 8.7/15 | 3+2+FO | 95+50/2 | 13.0 | 60.7 | 6309 | 5700 |
| 8.7/15 | 3+2+FO | 120+70/2 | 14.5 | 65.8 | 7772 | 7200 |
| 8.7/15 | 3+2+FO | 150+70/2 | 16.2 | 69.4 | 8971 | 9000 |
| 8.7/15 | 3+2+FO | 185+95/2 | 18.3 | 75.8 | 10702 | 11100 |
| 12/20 | 3+2+FO | 25+25/2 | 6.5 | 48.1 | 3229 | 1500 |
| 12/20 | 3+2+FO | 35+25/2 | 7.5 | 52.0 | 3885 | 2100 |
| 12/20 | 3+2+FO | 50+25/2 | 9.3 | 55.7 | 4600 | 3000 |
| 12/20 | 3+2+FO | 70+35/2 | 11.1 | 59.7 | 5584 | 4200 |
| 12/20 | 3+2+FO | 95+50/2 | 13.0 | 65.6 | 6961 | 5700 |
| 12/20 | 3+2+FO | 120+70/2 | 14.5 | 68.8 | 8181 | 7200 |
| 12/20 | 3+2+FO | 150+70/2 | 16.2 | 72.5 | 9401 | 9000 |
PCP / polyester version: 3.6/6–20/35 kV
Representative 3 × 25 mm² rows are shown below to compare voltage-related diameter changes; the linked PDF contains the complete size and electrical tables. This version lists +90 °C conductor operation, -40 to +90 °C fixed installation and -35 to +90 °C flexible operation. S-type directional changes are specified at 20 × OD; do not apply the thermoset bend figures to this build.
| U₀/U (kV) | Example core schedule | OD min (mm) | OD max (mm) | Mass (kg/km) |
|---|---|---|---|---|
| 3.6/6 | 3×25+2×25/2+FO | 40.0 | 43.0 | 2590 |
| 6/10 | 3×25+2×25/2+FO | 41.3 | 44.3 | 2660 |
| 8.7/15 | 3×25+2×25/2+FO | 43.6 | 46.6 | 2910 |
| 12/20 | 3×25+2×25/2+FO | 44.1 | 47.1 | 2980 |
| 14/25 | 3×25+2×25/2+FO | 47.9 | 50.9 | 3360 |
| 18/30 | 3×25+2×25/2+FO | 52.2 | 56.2 | 3900 |
| 20/35 | 3×25+2×25/2+FO | 56.8 | 60.8 | 4450 |
The datasheets reference DIN VDE 0250-813, IEC 60228, IEC 60332-1-2 and other test methods. Confirm the required evidence for the specific construction and order; a standard reference is not a certification claim for all variants.
Technical datasheets
- r ntscgewou fo 3 6 6kv 12 20kv fibre optic reeling cable PDF datasheet
- r ntscgewoeu fo 3 6 6kv 20 35kv pcp fibre optic reeling cable PDF datasheet
Request a configured cable
Send the voltage, phase and earth cross-sections, fibre count and type, drum diameter, speed, travel length, bending points, environment, termination method and quantity. TEBAOFLEX will confirm the construction, dimensions and order-specific documentation. Send Your Requirements.
Frequently asked questions
Does every FO version reach 20/35 kV?
No. The thermoset/polyamide datasheet ends at 12/20 kV. The PCP/polyester datasheet lists options through 20/35 kV.
Can one bend radius be used for both versions?
No. Their documented operating limits differ. Design the actual reel route against the selected version’s datasheet.
