Medium-voltage TBM reeling cable
This red-sheathed screened cable supplies tunnel boring machine reels where power, earth, control and monitoring functions need to travel together. The four voltage grades are grouped on one page, with dimensions listed by grade rather than presented as interchangeable.
Where it is used
TBM reeling drums and tunnel construction power feeds; check reel geometry, duty cycle and monitoring interface for each project.

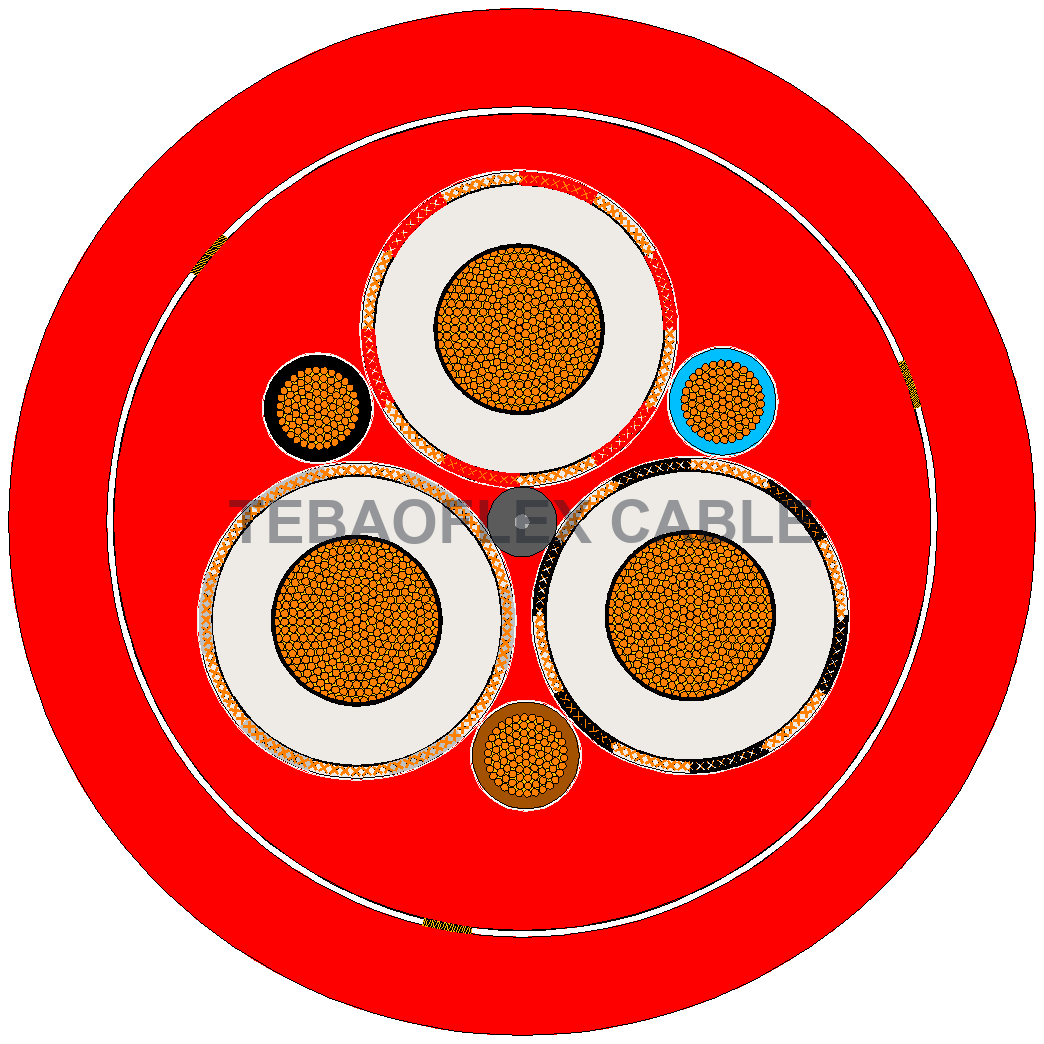

Cable construction
| Component | Specification |
|---|---|
| Phase conductor | Class 5 tinned copper |
| Insulation | Rubber compound; 3GI3 specified for 3.6/6 and 6/10 kV documents |
| Earth / control | Individual copper-wire earth screen and Class 5 tinned-copper control conductors |
| Monitoring conductor | Copper-wire screen over the inner sheath |
| Sheath | Red rubber outer sheath; 5GM5 specified in the lower-voltage document |
Operating and selection data
| Parameter | Documented value / selection note |
|---|---|
| Rated voltage | 3.6/6, 6/10, 8.7/15 and 12/20 kV |
| Fixed / flexed temperature | −40 to +90 °C / −25 to +90 °C |
| Minimum bending radius | 6 × OD fixed; 10 × OD flexed |
| Torsional stress | ±25°/m stated in the datasheets |
Dimensions by voltage and configuration
Nominal values from the company datasheet. Dimensions and weights may vary within manufacturing tolerances; electrical ratings depend on the stated installation conditions.
| Voltage (kV) | Core arrangement | Phase (mm²) | Earth (mm²) | Control / GC (mm²) | Conductor Ø (mm) | OD min (mm) | OD max (mm) | Tensile (N) | Weight (kg/km) |
|---|---|---|---|---|---|---|---|---|---|
| 3.6/6 | 3+3+3+ÜL | 25 | 25/3E | 2.5ST | 6.8 | 45.4 | 48.8 | 1125 | 3010 |
| 3.6/6 | 3+3+3+ÜL | 35 | 25/3E | 2.5ST | 7.8 | 46.9 | 50.4 | 1575 | 3390 |
| 3.6/6 | 3+3+3+ÜL | 50 | 25/3E | 2.5ST | 9.4 | 50 | 53.6 | 2250 | 4050 |
| 3.6/6 | 3+3+3+ÜL | 70 | 35/3E | 2.5ST | 11.2 | 55.6 | 59.4 | 3150 | 5260 |
| 3.6/6 | 3+3+3+ÜL | 95 | 50/3E | 2.5ST | 12.7 | 59.9 | 63.9 | 4275 | 6460 |
| 3.6/6 | 3+3+3+ÜL | 120 | 70/3E | 2.5ST | 14.4 | 64 | 68.4 | 5400 | 7820 |
| 3.6/6 | 3+3+3+ÜL | 150 | 70/3E | 2.5ST | 16.3 | 70.4 | 75 | 6750 | 9430 |
| 6/10 | 3+3+3+ÜL | 25 | 25/3E | 2.5ST | 6.8 | 45.4 | 49.4 | 1125 | 3050 |
| 6/10 | 3+3+3+ÜL | 35 | 25/3E | 2.5ST | 7.8 | 46.9 | 51 | 1575 | 3430 |
| 6/10 | 3+3+3+ÜL | 50 | 25/3E | 2.5ST | 9.4 | 50 | 54.2 | 2250 | 4090 |
| 6/10 | 3+3+3+ÜL | 70 | 35/3E | 2.5ST | 11.2 | 55.6 | 60 | 3150 | 5300 |
| 6/10 | 3+3+3+ÜL | 95 | 50/3E | 2.5ST | 12.7 | 59.9 | 64.5 | 4275 | 6500 |
| 6/10 | 3+3+3+ÜL | 120 | 70/3E | 2.5ST | 14.4 | 64 | 69.1 | 5400 | 7860 |
| 6/10 | 3+3+3+ÜL | 150 | 70/3E | 2.5ST | 16.3 | 70.4 | 75.7 | 6750 | 9470 |
| 8.7/15 | 3+3+3+ÜL | 25 | 25/3E | 2.5ST | 6.8 | 48 | 51.5 | 1125 | 3590 |
| 8.7/15 | 3+3+3+ÜL | 35 | 25/3E | 2.5ST | 7.8 | 49.5 | 53.1 | 1575 | 3990 |
| 8.7/15 | 3+3+3+ÜL | 50 | 25/3E | 2.5ST | 9.4 | 54.4 | 58.2 | 2250 | 4880 |
| 8.7/15 | 3+3+3+ÜL | 70 | 35/3E | 2.5ST | 11.2 | 58.2 | 62.2 | 3150 | 5950 |
| 8.7/15 | 3+3+3+ÜL | 95 | 50/3E | 2.5ST | 12.7 | 61.4 | 65.7 | 4275 | 7030 |
| 8.7/15 | 3+3+3+ÜL | 120 | 70/3E | 2.5ST | 14.4 | 67.4 | 71.9 | 5400 | 8690 |
| 12/20 | 3+3+3+ÜL | 25 | 25/3E | 2.5ST | 6.8 | 50.5 | 54.1 | 1125 | 3860 |
| 12/20 | 3+3+3+ÜL | 35 | 25/3E | 2.5ST | 7.8 | 52.3 | 56 | 1575 | 4260 |
| 12/20 | 3+3+3+ÜL | 50 | 25/3E | 2.5ST | 9.4 | 57.5 | 61.4 | 2250 | 5190 |
| 12/20 | 3+3+3+ÜL | 70 | 35/3E | 2.5ST | 11.2 | 61 | 65.3 | 3150 | 6280 |
| 12/20 | 3+3+3+ÜL | 95 | 50/3E | 2.5ST | 12.7 | 66.4 | 70.9 | 4275 | 7640 |
| 12/20 | 3+3+3+ÜL | 120 | 70/3E | 2.5ST | 14.4 | 70.5 | 75.2 | 5400 | 9050 |
Installation limits
Confirm the exact reeling speed, bend cycle, torsion and installation method before selection; the data sheets do not establish suitability for every TBM system.
Technical datasheets
- (N)TSCGECECWÖU Medium-Voltage TBM Reeling Cable | 3.6/6–6/10 kV Technical Datasheet
- (N)TSCGECECWÖU Medium-Voltage TBM Reeling Cable | 8.7/15–12/20 kV Technical Datasheet
Standards named in the datasheets are design or test references; request the applicable certificate and test evidence for the exact product configuration.
Request a configuration review
Send the voltage, conductor size, core arrangement, moving or fixed duty, bend radius, environment, required length and quantity to TEBAOFLEX. We will confirm the construction and commercial details for the project.
