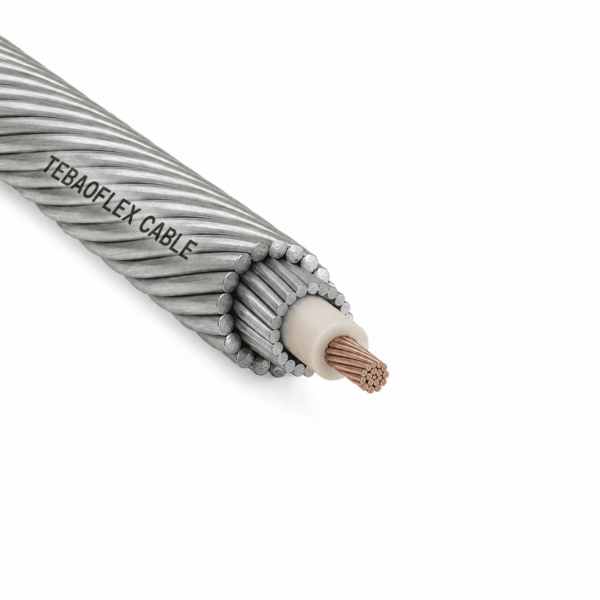

The 5.69 mm Mono Conductor Wireline Cable is an armored electrical cable for downhole logging, intervention, and well-service applications. Its construction combines a stranded copper conductor, insulation, and two mechanical armor layers to carry an electrical signal while supporting controlled deployment in the well. TEBAOFLEX can review the required load, sheave diameter, temperature, fluid exposure, and length before configuration selection.
Key Features
- Armored mono conductor construction for electrical continuity and mechanical support.
- Specified voltage, resistance, and tensile data for the documented configuration.
- Multiple insulation options where stated in the technical data, allowing selection by temperature requirement.
- Suitable for controlled wireline deployment where the selected load and sheave arrangement remain within the documented limits.
Downhole Application
Wireline systems are used to lower and retrieve downhole tools while providing a reliable electrical path. Installation should follow the selected cable’s documented load limits, bend guidance, and environmental requirements.
Technical Parameters
| Parameter | Specification |
|---|---|
| Center conductor | 16 AWG, 19 x 0.0119 in; 0.059 in / 1.499 mm nominal diameter |
| Insulation outside diameter | 0.108 in / 2.743 mm |
| Inner armor layer | 12 galvanized steel wires x 0.0310 in; 0.162 in / 4.115 mm layer OD |
| Outer armor layer | 18 galvanized steel wires x 0.0310 in; 0.224 in / 5.690 mm layer OD |
| Rated voltage | 1200 VDC |
| DC conductor resistance at 20 °C | 4.0 Ω/kft / 13.1 Ω/km |
| DC armor resistance at 20 °C | 4.4 Ω/kft / 14.4 Ω/km |
| Minimum insulation resistance | 1500 MΩ·kft / 457 MΩ·km |
| Breaking strength, fixed ends | 5,600 lb / 2,540 kg |
| Maximum working load | 3,360 lb / 1,524 kg |
| Suggested minimum sheave diameter | 14 in / 356 mm |
| Outside diameter tolerance | +0.005 / -0.002 in; +0.127 / -0.051 mm |
| Stretch coefficient | 2.5 ft/kft/klb / 2.8 m/km/5 kN |
Configuration and Insulation Options
| Insulation type | Maximum temperature | Capacitance | Weight in air / water |
|---|---|---|---|
| Polypropylene | 300 °F / 149 °C | 59 pF/ft / 193 pF/m | 140 / 118 kg/km |
| ETFE | 500 °F / 260 °C | 68 pF/ft / 223 pF/m | 144 / 122 kg/km |
| FEP/ETFE | 500 °F / 260 °C | 61 pF/ft / 200 pF/m | 145 / 122 kg/km |
| PFA | 550 °F / 288 °C | 58 pF/ft / 190 pF/m | 147 / 125 kg/km |
| Q600 | 600 °F / 315 °C | 58 pF/ft / 190 pF/m | 147 / 125 kg/km |
The supplied datasheet also lists corrosion-resistant alloy armor variants with an 18 AWG center conductor. Review the exact variant when corrosion resistance is a deciding requirement.
Selection Guidance
Match the exact conductor, armor material, insulation system, working load, sheave diameter, temperature, and well environment to the project requirement. The listed values are configuration-specific; confirm the final construction before purchasing.
Request a Quote
Request a quote with the required length, operating conditions, load, temperature range, and target configuration.
