RG7H1OR EPR Insulated Medium Voltage Power Cable

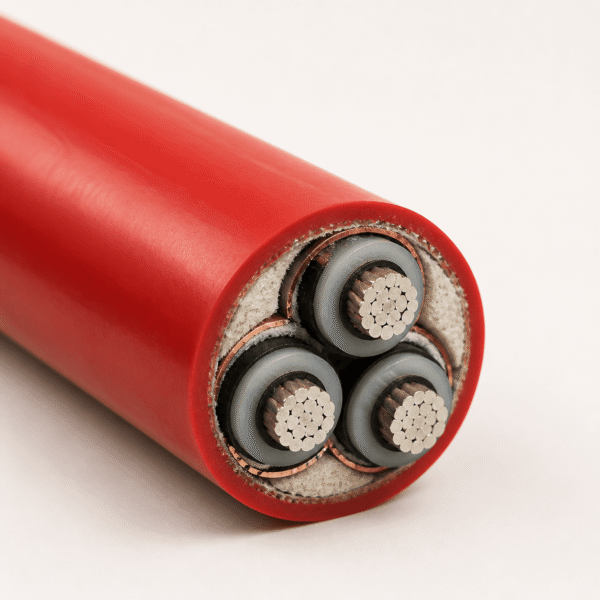

TEBAOFLEX RG7H1OR is a three-core medium-voltage power cable for fixed industrial and infrastructure installations. It combines Class 2 tinned copper conductors, G7 EPR insulation, copper-tape screening and a red PVC outer sheath in a construction referenced to IEC 60502-2.
The listed design is available across multiple voltage classes from 1.8/3 kV to 18/30 kV. Select the final voltage class, conductor size, installation method and any mechanical protection requirement according to the project specification.
Construction
- Conductor: Class 2 tinned copper, compact stranded construction.
- Insulation: G7 EPR rubber compound with extruded inner and outer semi-conductive layers.
- Screen: copper tape screen around each insulated core.
- Filler: flame-retardant compound.
- Outer sheath: red PVC, ST2 grade.
Key Ratings
| Parameter | Specification |
|---|---|
| Product type | RG7H1OR medium-voltage power cable |
| Voltage classes | 1.8/3 kV, 3.6/6 kV, 6/10 kV and 18/30 kV |
| Core configuration | Three cores |
| Conductor | Class 2 tinned copper |
| Insulation | G7 EPR rubber compound |
| Screen | Copper tape |
| Outer sheath | Red PVC, ST2 grade |
| Standard reference | IEC 60502-2 |
1.8/3kV Technical Data
| Formation | Approx. Conductor Diameter | Average Insulation Thickness | Max. External Diameter | Approx. Cable Weight | Current Rating in Air | Current Rating Buried |
|---|---|---|---|---|---|---|
| 3 × 10 mm² | 4.0 mm | 2.0 mm | 26.0 mm | 1,050 kg/km | 85 A | 83 A |
| 3 × 25 mm² | 6.0 mm | 2.0 mm | 30.2 mm | 1,600 kg/km | 145 A | 155 A |
| 3 × 50 mm² | 8.1 mm | 2.0 mm | 36.0 mm | 2,250 kg/km | 208 A | 216 A |
| 3 × 95 mm² | 11.4 mm | 2.0 mm | 43.4 mm | 4,100 kg/km | 318 A | 315 A |
| 3 × 150 mm² | 14.3 mm | 2.0 mm | 52.0 mm | 5,960 kg/km | 415 A | 400 A |
| 3 × 240 mm² | 18.3 mm | 2.0 mm | 62.0 mm | 9,300 kg/km | 555 A | 520 A |
| 3 × 400 mm² | 23.2 mm | 2.0 mm | 75.0 mm | 14,000 kg/km | 716 A | 651 A |
Current ratings depend on installation conditions. The listed buried ratings use the referenced ground thermal resistivity condition; confirm site conditions before final cable selection.
Typical Applications
- Medium-voltage distribution in industrial facilities
- Substation and transformer connections
- Fixed cable routes in commercial and infrastructure projects
- Projects requiring a screened three-core EPR-insulated cable with a red PVC sheath
Selection Checklist
- Confirm the required Uo/U voltage class.
- Identify the conductor cross-section and installation method.
- Check current-carrying requirements against actual ambient and soil conditions.
- Specify any additional protection, such as steel tape armour, if required by the project.
Request a Quote
Send TEBAOFLEX the voltage class, conductor size, total length, installation method and destination. Contact our technical sales team for an RG7H1OR cable quotation.
Related Cable Solutions
Explore TEBAOFLEX industrial and control cables and high-temperature and specialty cables.
Frequently Asked Questions
What is RG7H1OR cable?
RG7H1OR is a three-core screened medium-voltage cable with EPR insulation and a red PVC outer sheath.
Which voltage classes are available?
The referenced range includes 1.8/3 kV, 3.6/6 kV, 6/10 kV and 18/30 kV.
Can TEBAOFLEX review a project specification?
Yes. Share the required voltage, conductor size, route and operating conditions for review.
