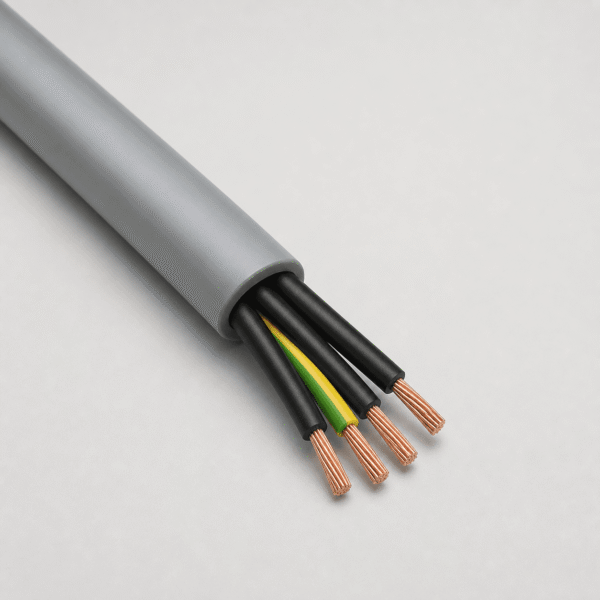

JZ-45440 P PVC-PUR control cable is an unshielded, flexible industrial control cable for machine tools, industrial machinery, measurement control and electrical equipment. The 300/500 V cable combines fine-stranded bare copper conductors, TPE core insulation and an oil-resistant PUR outer sheath for installations exposed to normal mechanical stress in dry or wet production environments.
Applications for JZ-45440 P PVC-PUR control cable
JZ-45440 P is suited to machinery and production-floor installations where a compact, flexible control cable is required. It can be specified for machine tools, control panels, handling equipment and electrical connections where the operating conditions match the cable’s voltage, temperature and bending requirements. Outdoor use is possible within the permitted temperature range.
Construction and material design
- Conductor: bare fine-stranded copper in accordance with EN 60228 Class 5.
- Core insulation: TPE compound.
- Core identification: black cores with continuous white numbering in accordance with DIN VDE 0293.
- Stranding: cores stranded in layers with an optimized lay length.
- Outer sheath: special grey PUR outer sheath, RAL 7001.
The cable is unshielded. Where an application requires EMC screening or a screened data-and-control construction, the cable selection should be reviewed before ordering.
Technical specifications
| Parameter | Specification |
|---|---|
| Product model | JZ-45440 P |
| Product type | Unshielded PVC-PUR industrial control cable |
| Nominal voltage U0/U | 300/500 V |
| Design standard | Adapted to EN 50525-2-51 |
| Test voltage | 4,000 V |
| Insulation resistance | Minimum 20 GΩ × cm |
| Temperature range, flexing | -40°C to +90°C |
| Temperature range, fixed installation | -50°C to +90°C |
| Minimum bending radius, flexing | 12.5 × cable diameter |
| Minimum bending radius, fixed installation | 4 × cable diameter |
| Outer sheath colour | Grey, RAL 7001 |
| Flame retardance | EN 60332-1-2 |
Performance in industrial environments
The PUR sheath is designed for extensive oil resistance, abrasion resistance and notch resistance. It also offers a low-adhesion surface and resistance to hydrolysis and microbes. These properties support reliable routing through machines and equipment where lubricants, dampness or routine mechanical contact may be present. The cable is also described for UV resistance in accordance with ASTM G154.
Available core configurations
The JZ-45440 P range includes multiple core counts and nominal cross-sectional areas. Refer to the applicable product schedule for the required configuration, cable diameter, copper weight and finished cable weight. Confirm the conductor size, core count, installation method and project requirements with TEBAOFLEX before placing an order.
