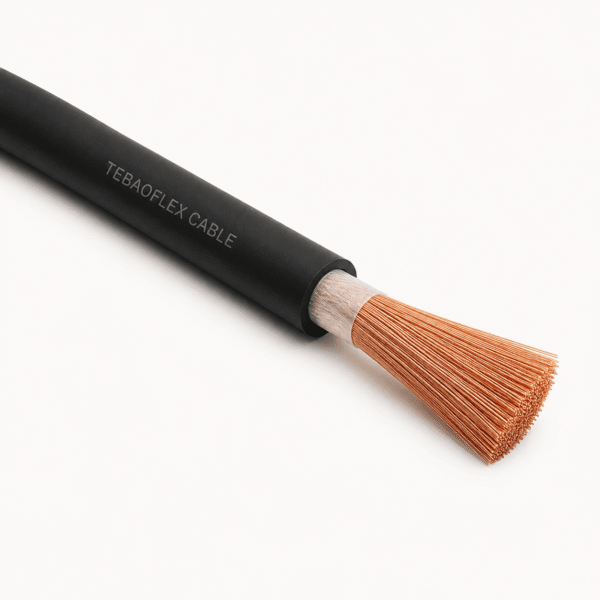

H01N2-E is a 100 V ultra-flexible, single-core rubber welding cable for robotic and automated welding operations that require a highly flexible copper conductor.
Applications
This cable is intended for welding robots, automotive production, shipyards, and manually or automatically operated line and spot welding. The specified construction is resistant to temperature changes, ozone, radiation, oils, acids, fats, and petrol.
Construction and Performance
- Extra-flexible conductor to Table B.2; generally Class 6 flexible copper.
- PET separator and black rubber sheath provide a robust single-core structure.
- Suitable for low- and high-temperature operating environments within the specified range.
- Flame-retardant performance is specified to IEC/EN 60332-1-2.
Technical Specifications
| Specification | Value |
|---|---|
| Product model | H01N2-E |
| Rated voltage | 100 V |
| Conductor | Extra-flexible copper, generally Class 6 |
| Separator | PET (polyester tape) |
| Outer sheath | Rubber compound |
| Sheath colour | Black |
| Temperature range, fixed | -40°C to +85°C |
| Temperature range, flexible | -20°C to +85°C |
| Minimum bending radius | 6 × overall diameter |
| Standards | EN 50525-2-81; HD 22.6; VDE 0282-6; EN 60228 |
| Flame retardancy | IEC/EN 60332-1-2 |
Available Sizes and Ratings
| Cross-section | Insulation thickness | Nominal overall diameter | Nominal weight |
|---|---|---|---|
| 120 mm² | 1.8 mm | 18.5 mm | 1,195 kg/km |
| 150 mm² | 1.8 mm | 21.3 mm | 1,485 kg/km |
Selection Guidance
Use this model where the specified large cross-sections and extra-flexible conductor are required. Confirm the duty cycle, cable route, movement, and final installed length before selecting a size.
For a configuration, length, or delivery requirement, please request a quote from TEBAOFLEX CABLE.
