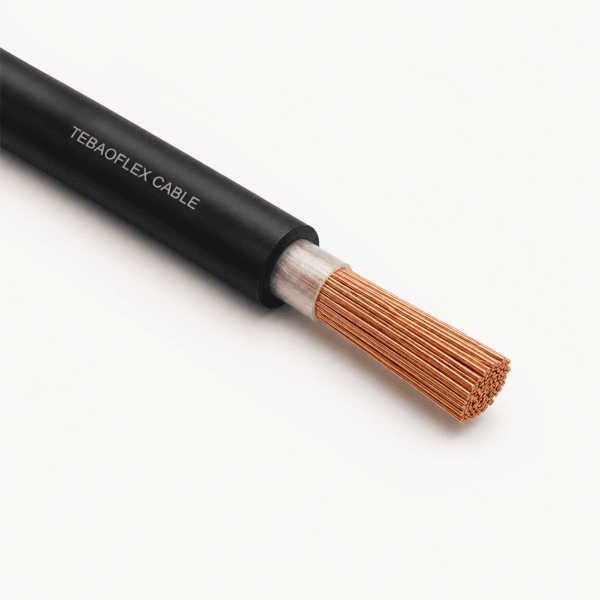

H01N2-D welding cable is a 100 V, single-core flexible rubber cable designed for welding robots, manual and automated spot-welding lines, and high-current interconnections.
Applications
Use H01N2-D cable in automotive production, shipyards, welding cells, battery interconnections, and battery storage systems. Its robust structure is specified for operating conditions involving oils, acids, fats, petrol, ozone, radiation, and temperature variation.
Construction and Performance
- Generally Class 6 flexible bare copper conductor for high flexibility.
- PET separator supports the single-core cable structure.
- Black or red rubber sheath options are specified.
- Flame-retardant performance is specified to IEC/EN 60332-1-2.
Technical Specifications
| Specification | Value |
|---|---|
| Product model | H01N2-D |
| Rated voltage | 100 V |
| Conductor | Flexible bare copper, generally Class 6 |
| Separator | PET (polyester tape) |
| Outer sheath | Rubber compound |
| Sheath colour | Black or red |
| Temperature range, fixed | -40°C to +85°C |
| Temperature range, flexible | -20°C to +85°C |
| Minimum bending radius | 6 × overall diameter |
| Standards | EN 50525-2-81; EN 60228; HD 22.6; VDE 0282-6 |
| Flame retardancy | IEC/EN 60332-1-2 |
Available Sizes and Ratings
| Cross-section | Insulation thickness | Nominal overall diameter | Nominal weight |
|---|---|---|---|
| 10 mm² | 2.0 mm | 9.0 mm | 146 kg/km |
| 16 mm² | 2.0 mm | 10.0 mm | 204 kg/km |
| 25 mm² | 2.0 mm | 11.5 mm | 290 kg/km |
| 35 mm² | 2.0 mm | 12.5 mm | 384 kg/km |
| 50 mm² | 2.2 mm | 14.5 mm | 535 kg/km |
| 70 mm² | 2.4 mm | 16.5 mm | 716 kg/km |
| 95 mm² | 2.6 mm | 18.5 mm | 943 kg/km |
| 120 mm² | 2.8 mm | 20.5 mm | 1,235 kg/km |
| 150 mm² | 3.0 mm | 23.0 mm | 1,556 kg/km |
Selection Guidance
Choose the conductor size against duty cycle, current requirement, cable length, and installation conditions. Review the sheath colour and final configuration before ordering.
For a configuration, length, or delivery requirement, please request a quote from TEBAOFLEX CABLE.
