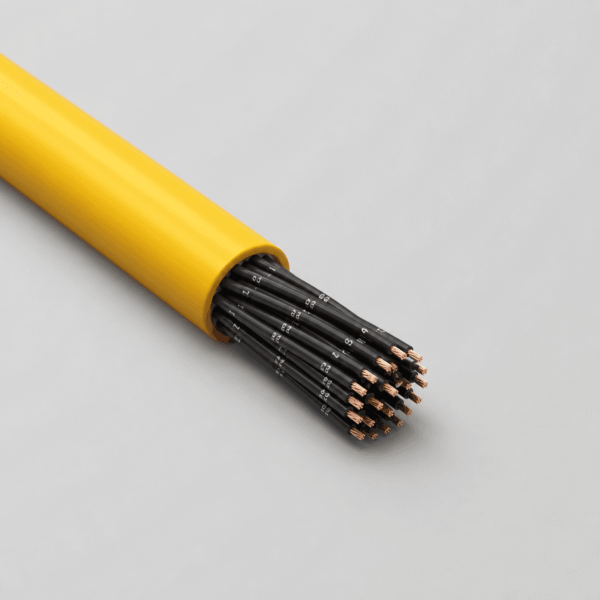

The GP 400 SF S Control 400 Hz Drag Chain Cable is intended for control circuits in moving passenger boarding bridge cable systems. Black numbered cores in paired construction support orderly identification when a control cable must operate through a drag chain or a festoon route.
Applications and Design
Use the GP 400 SF S Control cable in passenger boarding bridge drag chains and festoon systems that require flexible control-circuit routing. The final selection should consider travel distance, bend geometry, torsion and the required control-core arrangement.
Construction and Performance
- Bare, fine-stranded copper conductors to IEC 60228 Class 5.
- Black numbered control cores with paired and optimized layer construction.
- Yellow PUR outer sheath.
- Documented torsional capability of ±60° per metre and free-hanging festoon lengths up to 50 m.
- Halogen-free and flame-performance references include IEC 60332-1-2 and IEC 60332-3 series documents.
Technical Parameters
| Parameter | Documented value |
|---|---|
| Nominal voltage | 0.6/1 kV |
| Test voltage | 4,000 VAC at 50 Hz |
| Temperature, fixed | −50 to +90 °C |
| Temperature, flexible | −40 to +90 °C |
| Bending radius | 4 × cable diameter fixed; 6 × flexible; 12 × continuous flexing |
| Torsion | ±60°/m |
| Maximum free-hanging festoon length | 50 m |
| Sample construction | 12 × 2 × 1.5 mm² |
| Approx. outer diameter | 20.7–22.0 mm |
| Approx. cable weight | 529 kg/km |
| Conductor resistance | 13.3 Ω/km |
Selection Support
Provide the required pair count, route layout and motion conditions for review. Request a Quote
