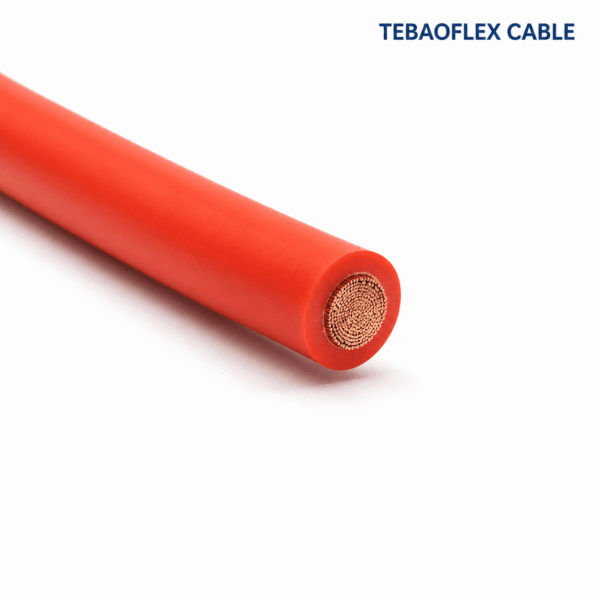

CS / ECS 180°C silicone insulated wire is a single-core high-temperature wire designed for equipment that needs reliable flexibility and stable insulation performance in hot environments. The CS version uses a flexible bare copper conductor, while ECS uses flexible tinned copper.
Key Features
- Class 5 flexible conductor construction in accordance with IEC 60228.
- Silicone rubber insulation for an operating temperature range from -60 °C to +180 °C.
- Rated at 300/500 V for sections below 2.5 mm² and 600/1000 V from 2.5 mm² upward.
- Halogen-free, low-corrosivity and low-smoke material properties are specified in the source data.
Typical Applications
Suitable for heating appliances, class H rotating machines, lighting systems, and industrial equipment operating in high-temperature areas.
Technical Parameters
| Parameter | Specification |
|---|---|
| Conductor options | Class 5 bare copper (CS) or tinned copper (ECS) |
| Insulation | Silicone rubber |
| Rated voltage | 300/500 V or 600/1000 V by conductor section |
| Test voltage | 2 kV or 3 kV by conductor section |
| Operating temperature | -60 °C to +180 °C |
| Conductor section range | 0.25 to 400 mm² |
| Reference standards | IEC 60228; IEC 60754-1/-2; IEC 61034-2; NF C 32-070 C1 |
Selection note: Confirm the required conductor section and voltage class before ordering.
Specify Your Requirement
For a configuration review, provide the conductor size, voltage requirement, installation environment, and any required approvals to the TEBAOFLEX technical team.
