SiHFC 180°C screened silicone cable is designed for dependable electrical connections where its conductor construction, insulation system and stated temperature capability match the application.
Applications
SiHFC 180°C screened silicone cable is suitable for mobile electrical appliances without mechanical stress in elevated or low-temperature environments. Typical uses include mechanically protected conduits, steelworks and EMC-sensitive fixed connections.
Construction

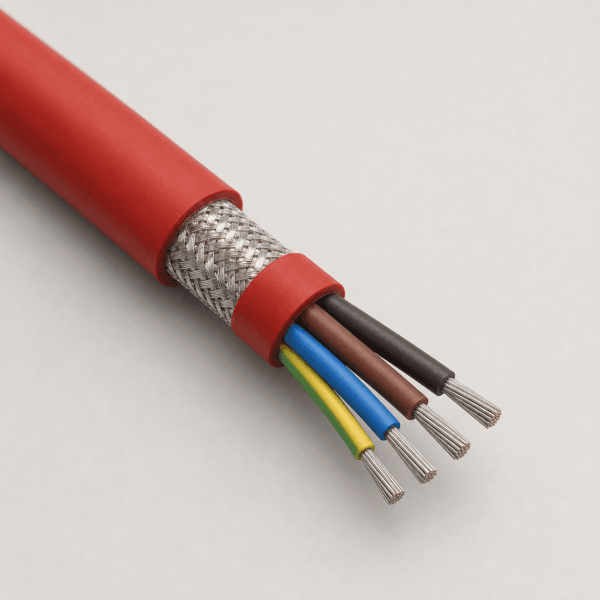

Class 5 flexible stranded tinned copper conductors; silicone rubber insulation and inner sheath; tinned copper wire braid screen; red silicone rubber outer sheath.
Technical Parameters
| Parameter | Value |
|---|---|
| Rated voltage | 300/500 V |
| Temperature range, fixed | -60°C to +180°C |
| Minimum bending radius, fixed | 5 × overall diameter |
| Minimum bending radius, flexed | 10 × overall diameter |
| Screen | Tinned copper wire braid (TCWB) |
| Flame retardant | IEC 60332-1-2 |
Selected Size Options
| Nominal cross-sectional area (mm²) | Minimum overall diameter (mm) | Maximum overall diameter (mm) | Nominal weight (kg/km) |
|---|---|---|---|
| 2 | 0.75 | 9.2 | 124 |
| 4 | 1.5 | 12.1 | 230 |
| 4 | 6 | 18.8 | 781 |
| 5 | 2.5 | 15.6 | 394 |
| 12 | 1 | 15.2 | 454 |
| 25 | 1.5 | 27.0 | 791 |
Dimensions and weights are nominal values. Confirm conductor size, colour and installation conditions before ordering.
