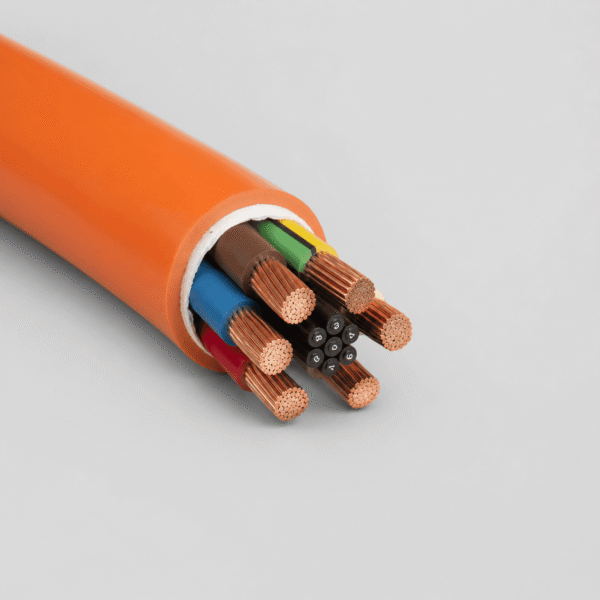

The GP 400 SY PVC 400 Hz Aircraft Ground Power Cable is a fixed-installation cable for the connection between an aircraft ground-power generator and a cable dispenser. Fine-stranded copper power conductors and control cores are combined in an orange PVC-sheathed construction for clearly identified ground-support equipment routes.
Applications and Design
This GP 400 SY PVC cable suits permanently installed 400 Hz ground-power connections. It is intended for defined equipment routes rather than continuous drag-chain travel. Confirm the interface voltage, conductor arrangement and installation conditions before selecting a configuration.
Construction and Performance
- Bare, fine-stranded copper conductors to IEC 60228 Class 5.
- PVC insulation for the documented core sizes and numbered control cores.
- Orange PVC outer sheath for equipment-area identification.
- Flame-retardant and self-extinguishing performance referenced to IEC 60332-1-2.
Technical Parameters
| Parameter | Documented value |
|---|---|
| Nominal voltage | Uo/U 115/200 V; maximum 0.6/1 kV |
| Test voltage | 4,000 VAC at 50 Hz |
| Temperature, fixed | −30 to +70 °C |
| Temperature, flexible | +5 to +70 °C |
| Bending radius | 4 × cable diameter fixed; 6 × flexible; 3 × single bend |
| Sample constructions | 7 × 35 + 6 × 4 × 1 mm²; 7 × 70 + 6 × 4 × 1 mm² |
| Approx. outer diameter | 35.5–52.0 mm |
| Approx. cable weight | 3,164–5,780 kg/km |
Selection Support
Share the generator output, cable-dispenser arrangement and required conductor layout for a configuration review. Request a Quote
